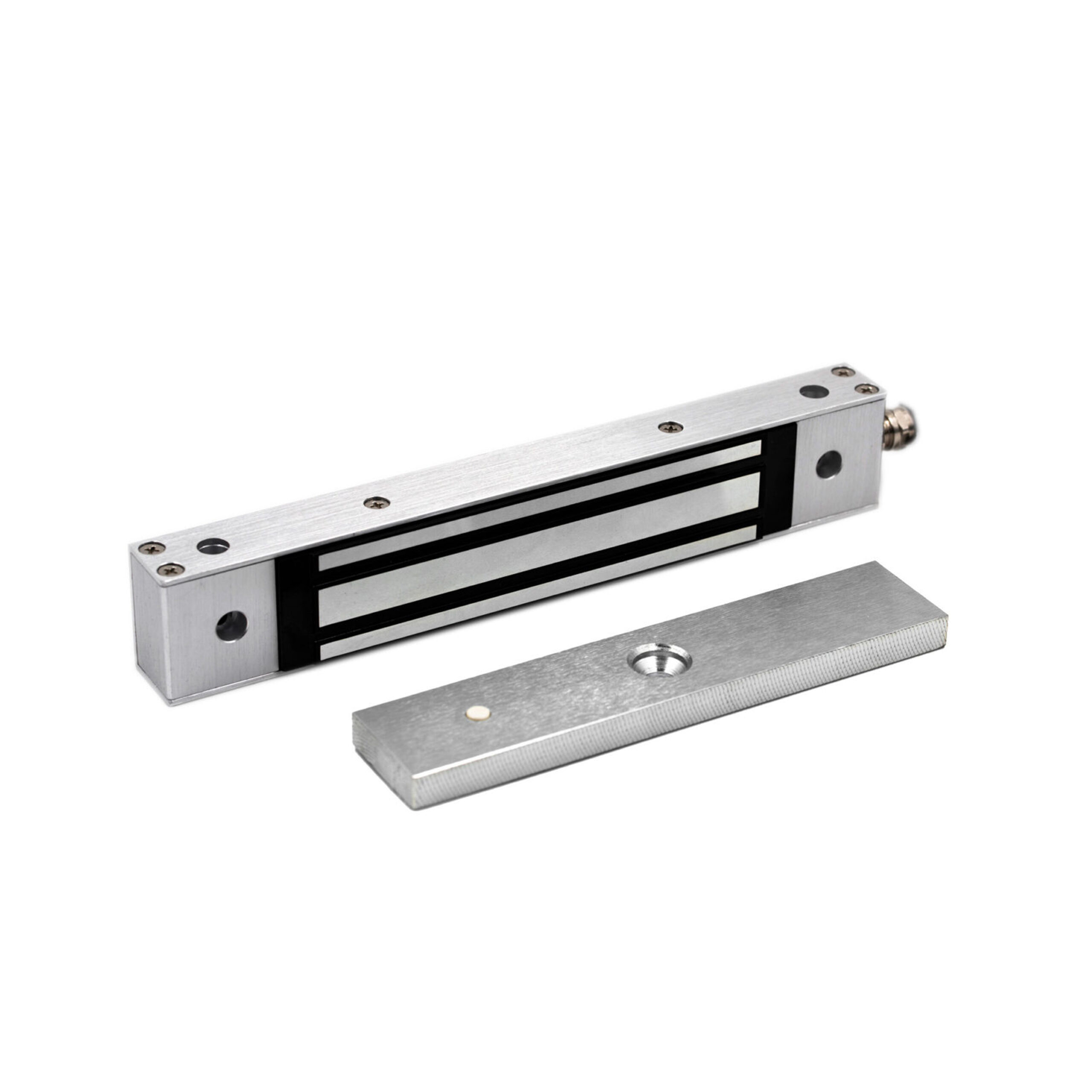

AEL0221.OD – IPIXA 600lbs Single Out Door Electromagnetic Lock

SKU: AEL0221.OD Category: Tag:

IPIXA Single Electromagnetic OUTDOOR Lock of holding Force 600 lbs Plus with LED display on lock for visual confirmation of door status. IP65 Rated and In-Built Door Status Monitoring gives door status: Forced Open/Held Open/Access Granted-Door Used, etc.

Suitable for Single Leaf Wooden & Metal Doors.

Tested to 500,000 Cycles.

3 Years Warranty*.

CE Certified.

IP65 RATED

Material: Stainless Steel and pure Copper Coil

Holding Force: 600 lbs

Operating Voltage: 12 / 24 VDC

Cycle Testing: 500,000 Cycles

Current Draw: 0.5 A @ 12VDC ; 0.250 A @ 24 VDC

Door Status Monitoring: Inbuilt Door Status Monitoring with output

Certifications: CE, RoHs

Features:

  • Stainless Steel Anti-Water Connection Steel Column
  • Suitable for both Indoor & Outdoor Settings
  • Waterproof, whole sealing treatment
  • Built-in reverse current protection (MOV)
  • Magnetic Bond Intact / Hall Sensor
  • Tamper Resistant Fixing

Electromagnetic Lock Brackets:

AEL0224. OD – Z Bracket

AEL0225.OD – L Bracket

What Warranty do IPIXA products have?

All products carry a 3 year Warranty.

Does IPIXA Mag Locks have a full range of brackets?

Yes, all common brackets are stocked and developed for IPIXA mag Locks.
